| Quantity: | |
|---|---|
MK MKS 1501 2001 2501
ALM
8479909090
Pneumatic braking systems use compressed air to create mechanical motion,providing controlled and reliable stopping power.The MK and MKS series offer innovative solutions forlinear guide clamping,ensuring precision and safety in various applications.
| Material | 20Crmo+Nickel Plating |
Range of application | Suitable for most linear guides on the market |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Guide rail series | 15; 20; 25; 30; 35; 45; 55; 65 |
Clamping force | The clamping force is up to 2000N |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Type | Manual and pneumatic |
ALM's clamping element can replace zimmer's clamping element
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK15B | MK1501A | HGH15/HGW15/EGH15/EGW15 |
| AK20B | MK2001A | HGH20/HGW20/EGH20/EGW20 |
| AK25B | MK2501A | HGH25/HGW25/EGH25/EGW25 |
| AK30B | MK3001A | HGH30/HGW30/EGH30/EGW30 |
| AK35B | MK3501A | HGH35/HGW35/EGH35/EGW35 |
| AK40B | MK4501A | HGH45/HGW45/EGH45/EGW45 |
| AK55B | MK5501A | HGH55/HGW55/EGH55/EGW55 |
| AK65B | MK6501A | HGH65/HGW65/EGH65/EGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK25R | MK2501E | RGH25/RGW25 |
| AK30R | MK3001E | RGH30/RGW30 |
| AK35R | MK3501E | RGH35/RGW35 |
| AK45R | MK4501E | RGH45/RGW45 |
| AK55R | MK5501E | RGH55/RGW55 |
| AK65R | MK6501E | RGH65/RGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AKS15B | MKS1501A | HGH15/HGW15/EGH15/EGW15 |
| AKS20B | MKS2001A | HGH20/HGW20/EGH20/EGW20 |
| AKS25B | MKS2501A | HGH25/HGW25/EGH25/EGW25 |
| AKS30B | MKS3001A | HGH30/HGW30/EGH30/EGW30 |
| AKS35B | MKS3501A | HGH35/HGW35/EGH35/EGW35 |
| AKS45B | MKS4501A | HGH45/HGW45/EGH45/EGW45 |
| AKS55B | MKS5501A | HGH55/HGW55/EGH55/EGW55 |
| AKS65B | MKS6501A | HGH65/HGW65/EGH65/EGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AKS25R | MKS2501E | RGH25/RGW25 |
| AKS30R | MKS3001E | RGH30/RGW30 |
| AKS35R | MKS3501E | RGH35/RGW35 |
| AKS45R | MKS4501E | RGH45/RGW45 |
| AKS55R | MKS5501E | RGH55/RGW55 |
| AKS65R | MKS6501E | RGH65/RGW65 |

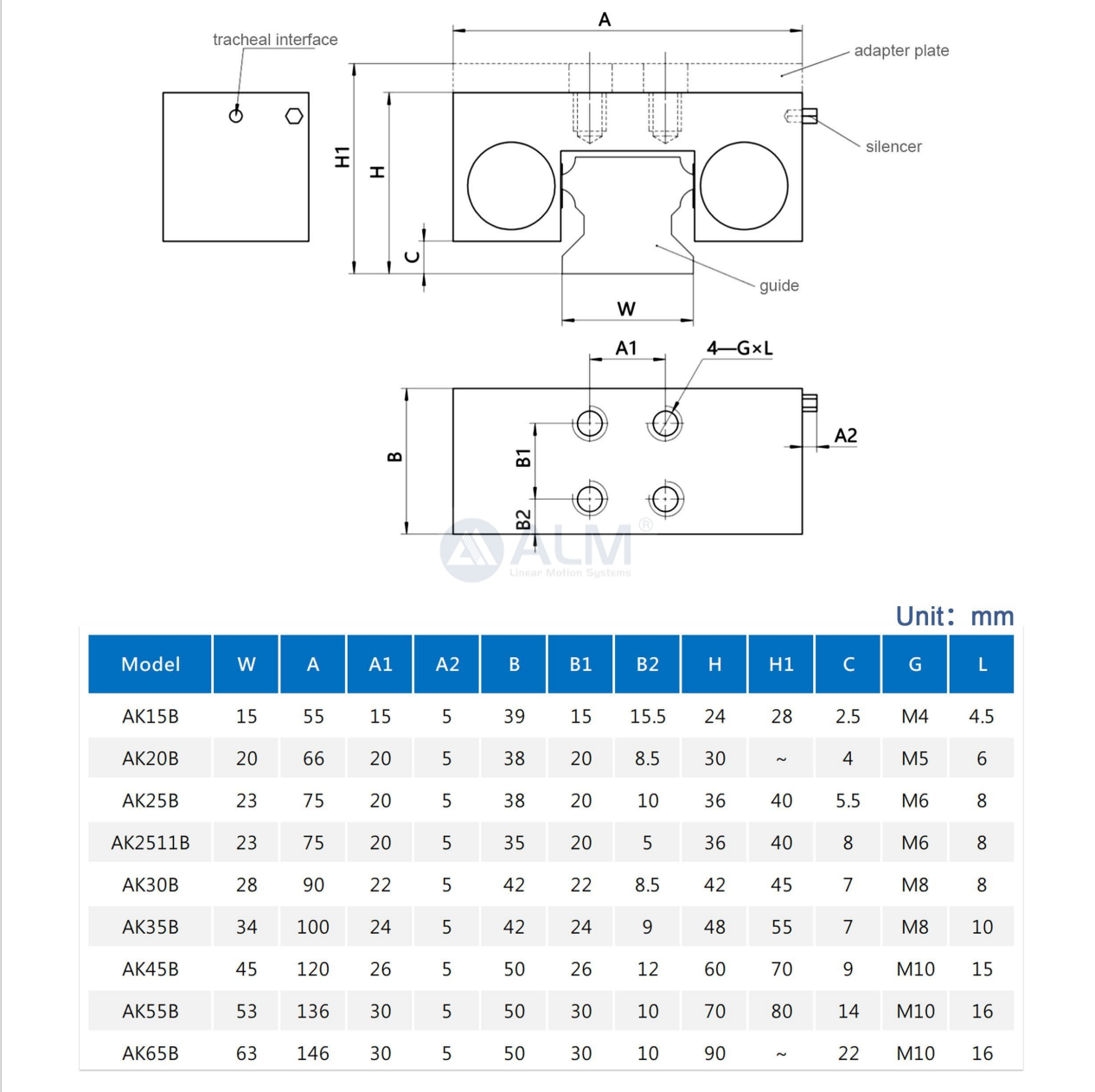

Linear guide clamping dimension as follows
Pneumatic braking systems use compressed air to create mechanical motion,providing controlled and reliable stopping power.The MK and MKS series offer innovative solutions forlinear guide clamping,ensuring precision and safety in various applications.
| Material | 20Crmo+Nickel Plating |
Range of application | Suitable for most linear guides on the market |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Guide rail series | 15; 20; 25; 30; 35; 45; 55; 65 |
Clamping force | The clamping force is up to 2000N |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Type | Manual and pneumatic |
ALM's clamping element can replace zimmer's clamping element
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK15B | MK1501A | HGH15/HGW15/EGH15/EGW15 |
| AK20B | MK2001A | HGH20/HGW20/EGH20/EGW20 |
| AK25B | MK2501A | HGH25/HGW25/EGH25/EGW25 |
| AK30B | MK3001A | HGH30/HGW30/EGH30/EGW30 |
| AK35B | MK3501A | HGH35/HGW35/EGH35/EGW35 |
| AK40B | MK4501A | HGH45/HGW45/EGH45/EGW45 |
| AK55B | MK5501A | HGH55/HGW55/EGH55/EGW55 |
| AK65B | MK6501A | HGH65/HGW65/EGH65/EGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK25R | MK2501E | RGH25/RGW25 |
| AK30R | MK3001E | RGH30/RGW30 |
| AK35R | MK3501E | RGH35/RGW35 |
| AK45R | MK4501E | RGH45/RGW45 |
| AK55R | MK5501E | RGH55/RGW55 |
| AK65R | MK6501E | RGH65/RGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AKS15B | MKS1501A | HGH15/HGW15/EGH15/EGW15 |
| AKS20B | MKS2001A | HGH20/HGW20/EGH20/EGW20 |
| AKS25B | MKS2501A | HGH25/HGW25/EGH25/EGW25 |
| AKS30B | MKS3001A | HGH30/HGW30/EGH30/EGW30 |
| AKS35B | MKS3501A | HGH35/HGW35/EGH35/EGW35 |
| AKS45B | MKS4501A | HGH45/HGW45/EGH45/EGW45 |
| AKS55B | MKS5501A | HGH55/HGW55/EGH55/EGW55 |
| AKS65B | MKS6501A | HGH65/HGW65/EGH65/EGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AKS25R | MKS2501E | RGH25/RGW25 |
| AKS30R | MKS3001E | RGH30/RGW30 |
| AKS35R | MKS3501E | RGH35/RGW35 |
| AKS45R | MKS4501E | RGH45/RGW45 |
| AKS55R | MKS5501E | RGH55/RGW55 |
| AKS65R | MKS6501E | RGH65/RGW65 |

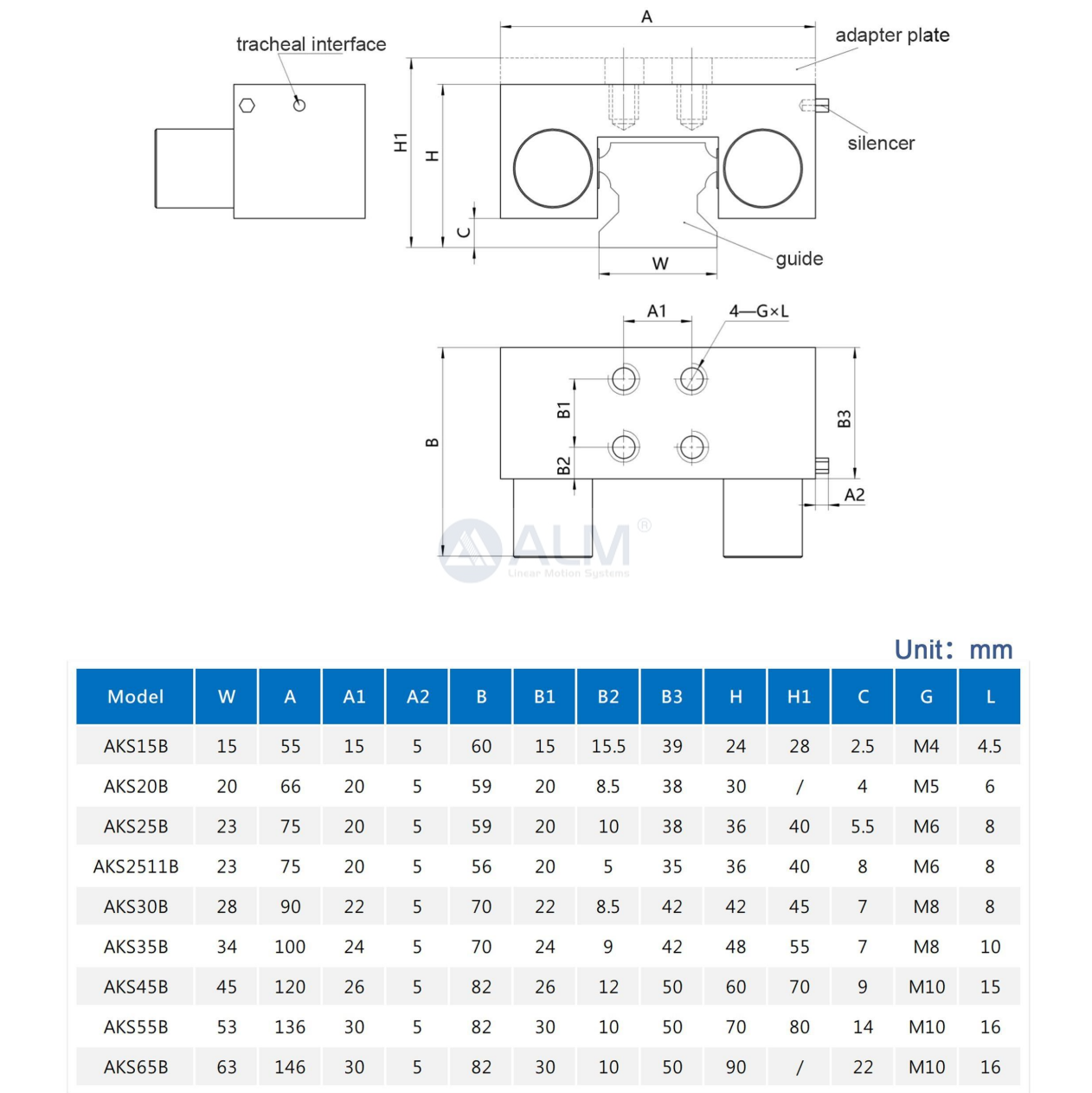

Linear guide clamping dimension as follows
