MK series
ALM
8479909090

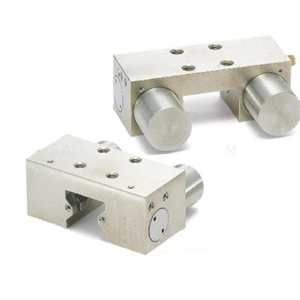

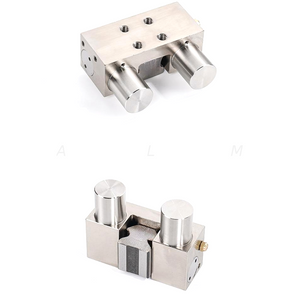

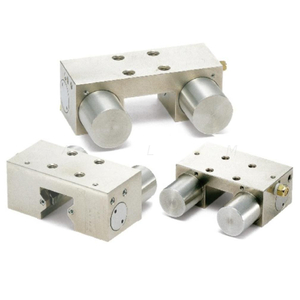

Gripper Linear Guide Braking Normally Open Pneumatic Clamping Element

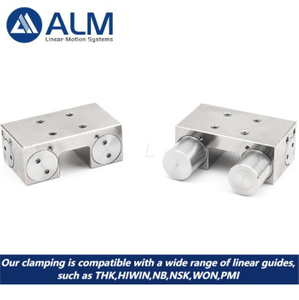

Pneumatic clamping elements are devices that use compressed air to secure and release workpieces in various industrial applications.They provide a reliable and efficient method for holding components in place during machining,assembly,and inspection processes.Our linear guide clamps are suitable for most rails,such as THK,HIWIN,PMI,WON and other brands.
Please contact sales and we will help with selection and send pneumatic clamping 2D and 3D drawings.
| Material | 20Crmo+Nickel Plating |
Range of application | Suitable for most linear guides on the market |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Guide rail series | 15; 20; 25; 30; 35; 45; 55; 65 |
Clamping force | The clamping force is up to 2000N |
| Packing | Carton+Plastic bag + Wooden box or according to customers' demands |
| Type | Manual and pneumatic |
ALM's clamping element can replace zimmer's clamping element
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK15B | MK1501A | HGH15/HGW15/EGH15/EGW15 |
| AK20B | MK2001A | HGH20/HGW20/EGH20/EGW20 |
| AK25B | MK2501A | HGH25/HGW25/EGH25/EGW25 |
| AK30B | MK3001A | HGH30/HGW30/EGH30/EGW30 |
| AK35B | MK3501A | HGH35/HGW35/EGH35/EGW35 |
| AK40B | MK4501A | HGH45/HGW45/EGH45/EGW45 |
| AK55B | MK5501A | HGH55/HGW55/EGH55/EGW55 |
| AK65B | MK6501A | HGH65/HGW65/EGH65/EGW65 |
| ALM's model | Zimmer's model | Suitable for HIWIN rail |
| AK25R | MK2501E | RGH25/RGW25 |
| AK30R | MK3001E | RGH30/RGW30 |
| AK35R | MK3501E | RGH35/RGW35 |
| AK45R | MK4501E | RGH45/RGW45 |
| AK55R | MK5501E | RGH55/RGW55 |
| AK65R | MK6501E | RGH65/RGW65 |

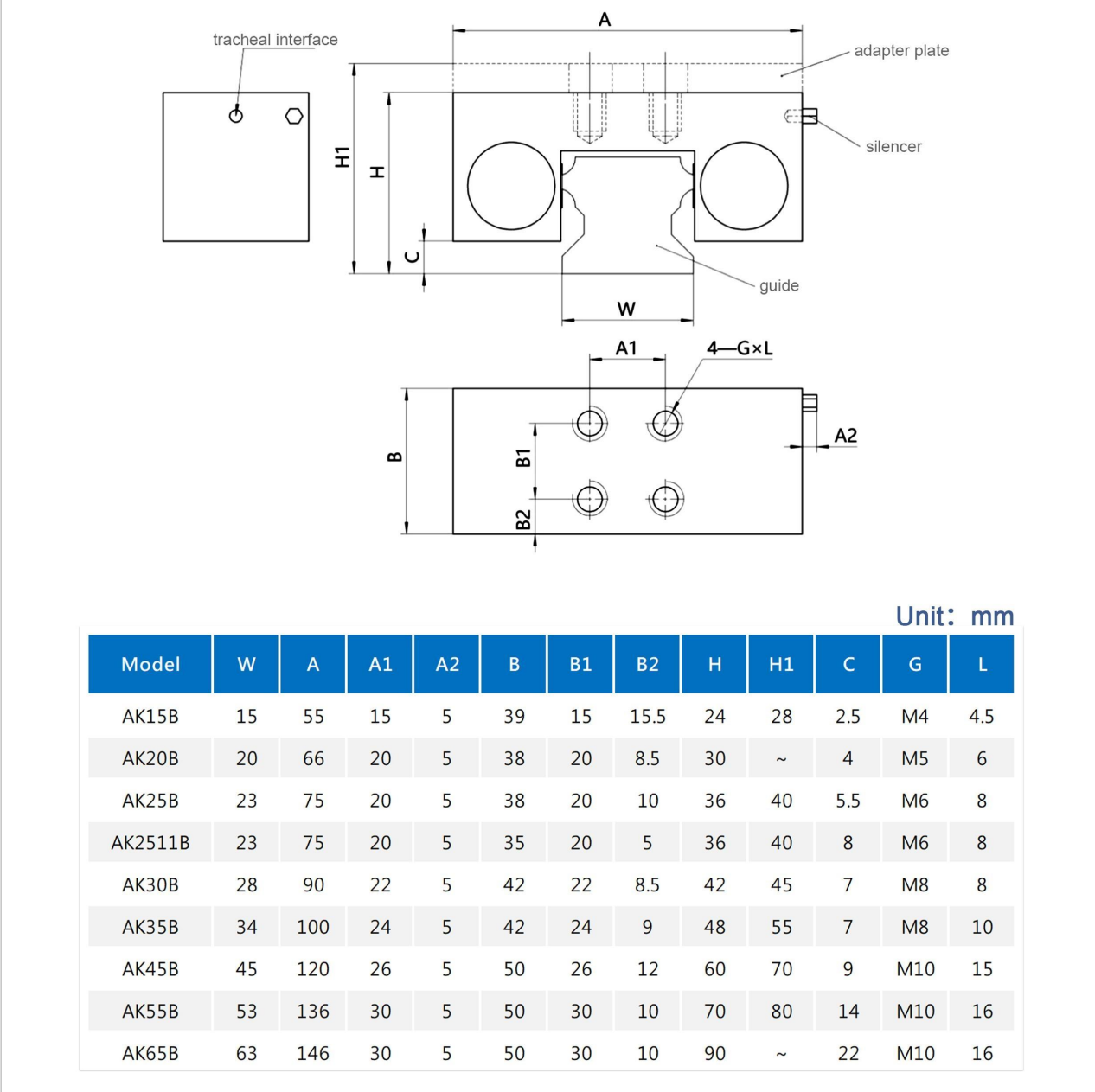

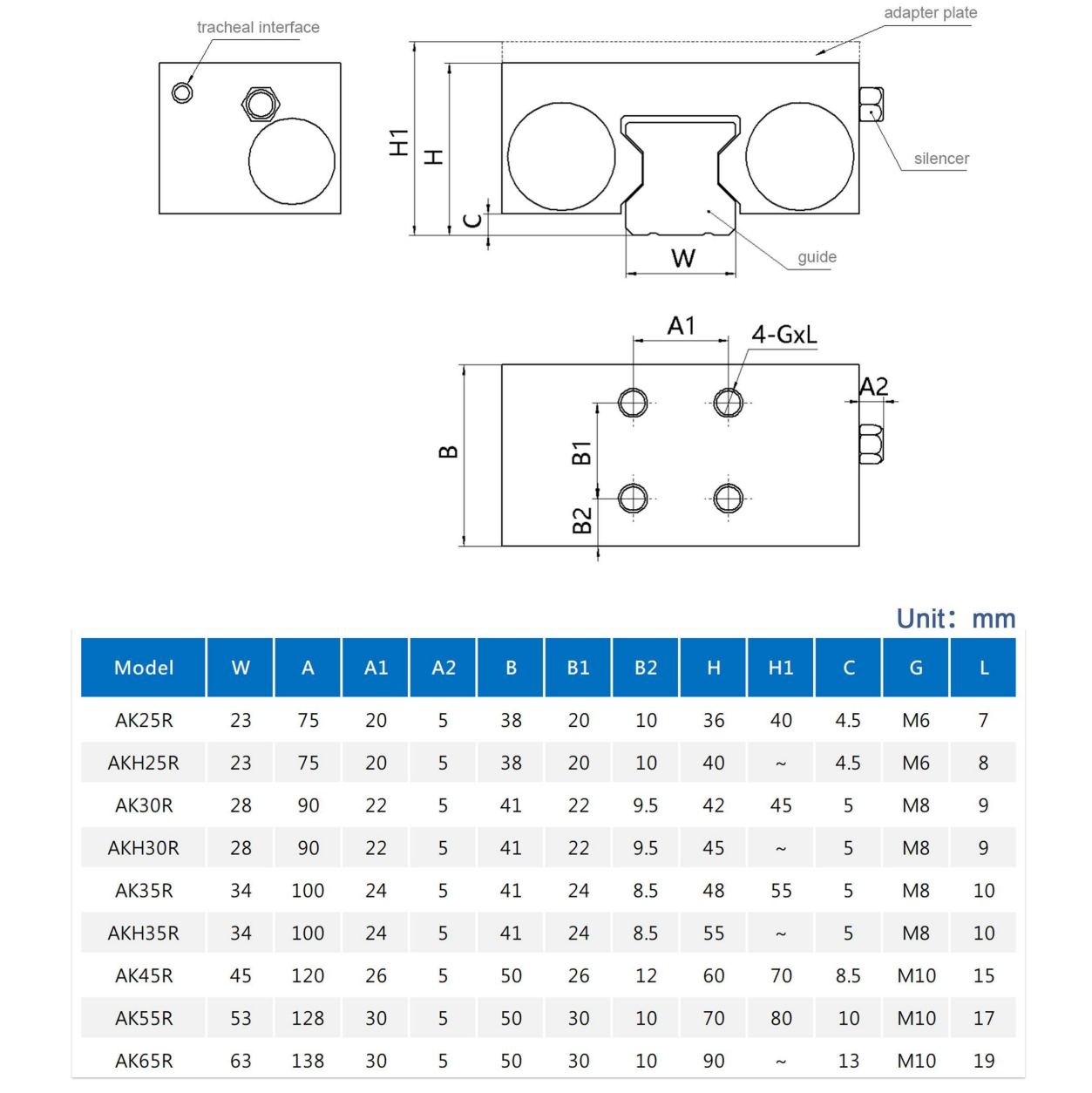

Linear guide clamping dimension
