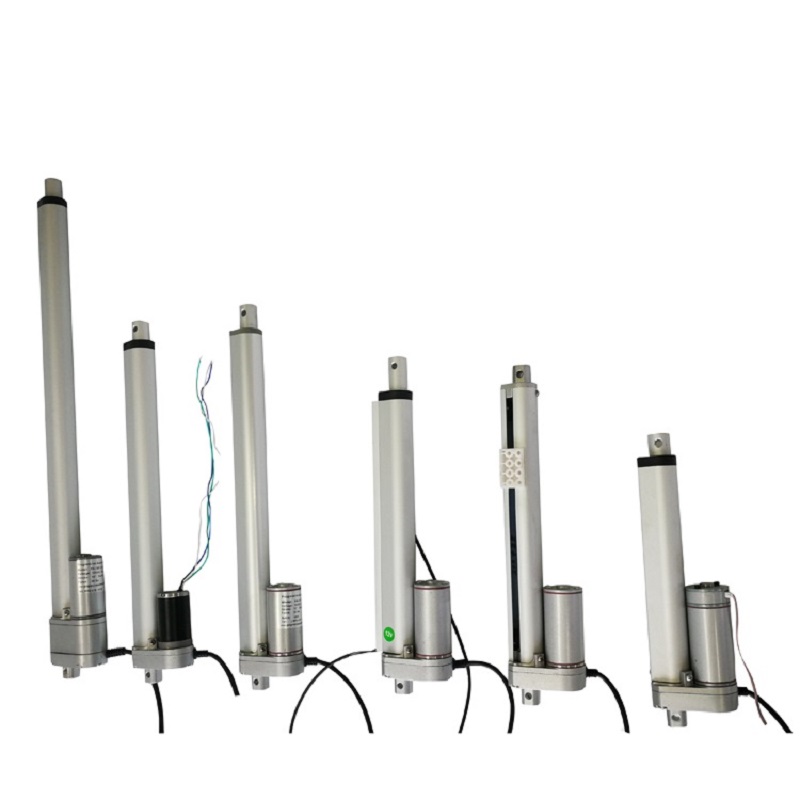

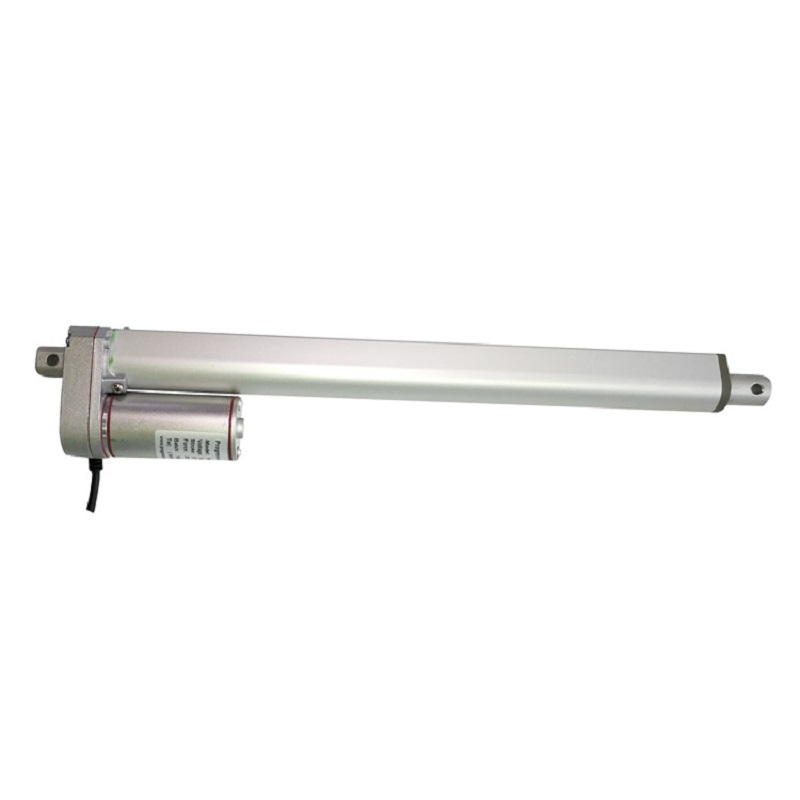

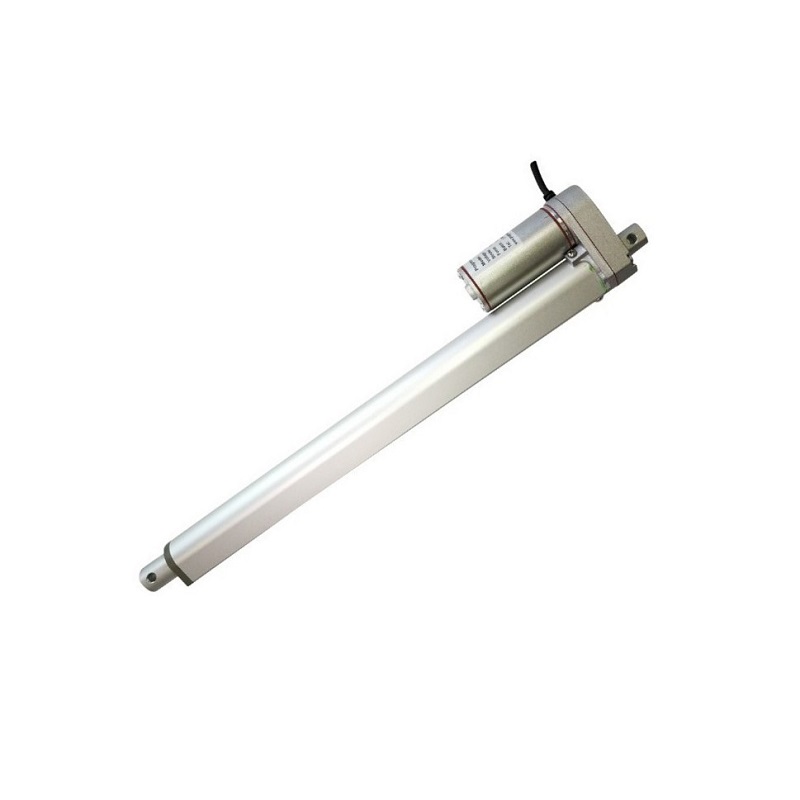

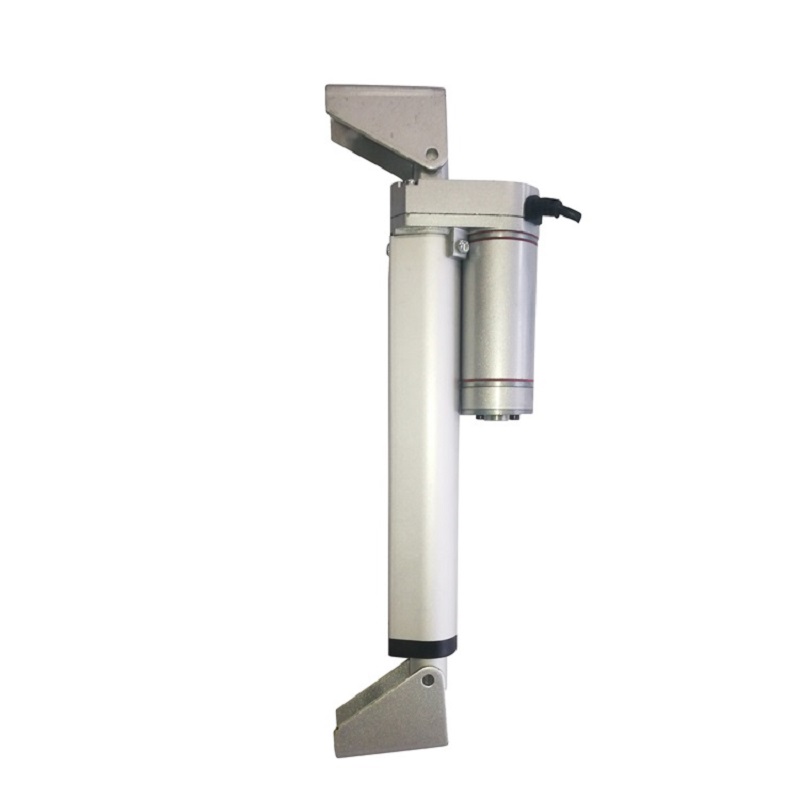

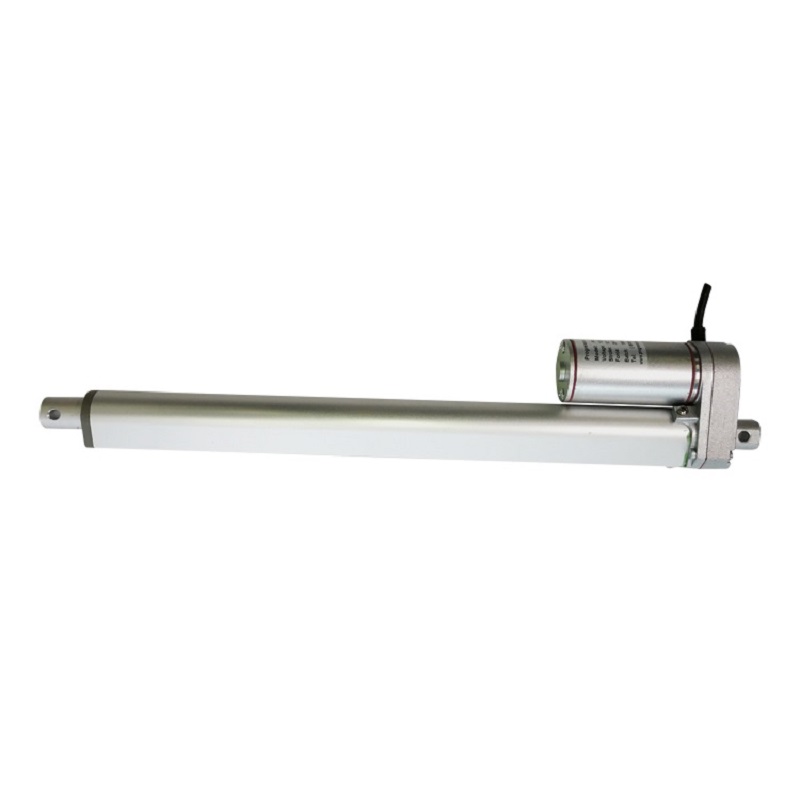

LA-AB
ALM
8483900090
1. Voltage: 12/24/36/48VDC as option
2. Stroke lenght: 12mm~1200mm
3. Max Push force: 900N
4. Max speed: 100mm/sec
5. IP54/IP65 IP grade
6. Temperature range: -26ºC~65ºC (-15ºF~150ºF)
7. Color: Grey, black, red as option
8. Built-in limit switches
Feedback: Encoder, Potentiometer, Hall sensor, Limit switch feedback,external limit switch
1. Voltage: 12/24/36/48VDC as option
2. Stroke lenght: 12mm~1200mm
3. Max Push force: 900N
4. Max speed: 100mm/sec
5. IP54/IP65 IP grade
6. Temperature range: -26ºC~65ºC (-15ºF~150ºF)
7. Color: Grey, black, red as option
8. Built-in limit switches
Feedback: Encoder, Potentiometer, Hall sensor, Limit switch feedback,external limit switch

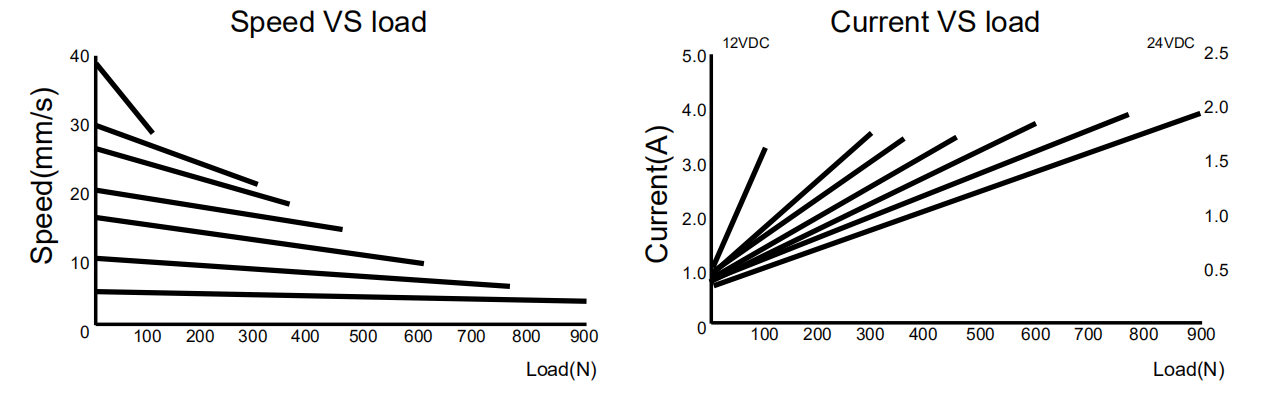

MODEL | LOAD（N） | NO LOAD SPEED/ LOAD SPEED MM/S | DUTY CYCLE（%） | ||
LA-AB-3 | 900 | 3/3 | 25 | ||
LA-AB-6 | 900 | 6/4 | 25 | ||
LA-AB-10 | 750 | 10/7 | 25 | ||
LA-AB-16 | 600 | 16/9 | 25 | ||
LA-AB-20 | 450 | 20/14 | 25 | ||
LA-AB-24 | 350 | 24/16 | 25 | ||
LA-AB-29 | 300 | 29/21 | 25 | ||
LA-AB-40 | 200 | 40/23 | 25 | ||
LA-AB-50 | 150 | 50/30 | 25 | ||
LA-AB-60 | 100 | 60/36 | 25 | ||
LA-AB-80 | 50 | 80/50 | 25 | ||
LA-S-6 | 400 | 6/5.2 | 25 | ||
LA-S-10 | 350 | 10/8.5 | 25 | ||
LA-S-16 | 300 | 16/13 | 25 | ||
LA-S-20 | 250 | 20/17 | 25 | ||
LA-S-24 | 200 | 24/20 | 25 | ||
LA-S-29 | 150 | 29/24 | 25 |
MODEL | LOAD（N） | NO LOAD SPEED/ LOAD SPEED MM/S | DUTY CYCLE（%） | ||
LA-AB-3 | 900 | 3/3 | 25 | ||
LA-AB-6 | 900 | 6/4 | 25 | ||
LA-AB-10 | 750 | 10/7 | 25 | ||
LA-AB-16 | 600 | 16/9 | 25 | ||
LA-AB-20 | 450 | 20/14 | 25 | ||
LA-AB-24 | 350 | 24/16 | 25 | ||
LA-AB-29 | 300 | 29/21 | 25 | ||
LA-AB-40 | 200 | 40/23 | 25 | ||
LA-AB-50 | 150 | 50/30 | 25 | ||
LA-AB-60 | 100 | 60/36 | 25 | ||
LA-AB-80 | 50 | 80/50 | 25 | ||
LA-S-6 | 400 | 6/5.2 | 25 | ||
LA-S-10 | 350 | 10/8.5 | 25 | ||
LA-S-16 | 300 | 16/13 | 25 | ||
LA-S-20 | 250 | 20/17 | 25 | ||
LA-S-24 | 200 | 24/20 | 25 | ||
LA-S-29 | 150 | 29/24 | 25 |
Datasheet:
linear actuator catalog LA-AB.pdf
