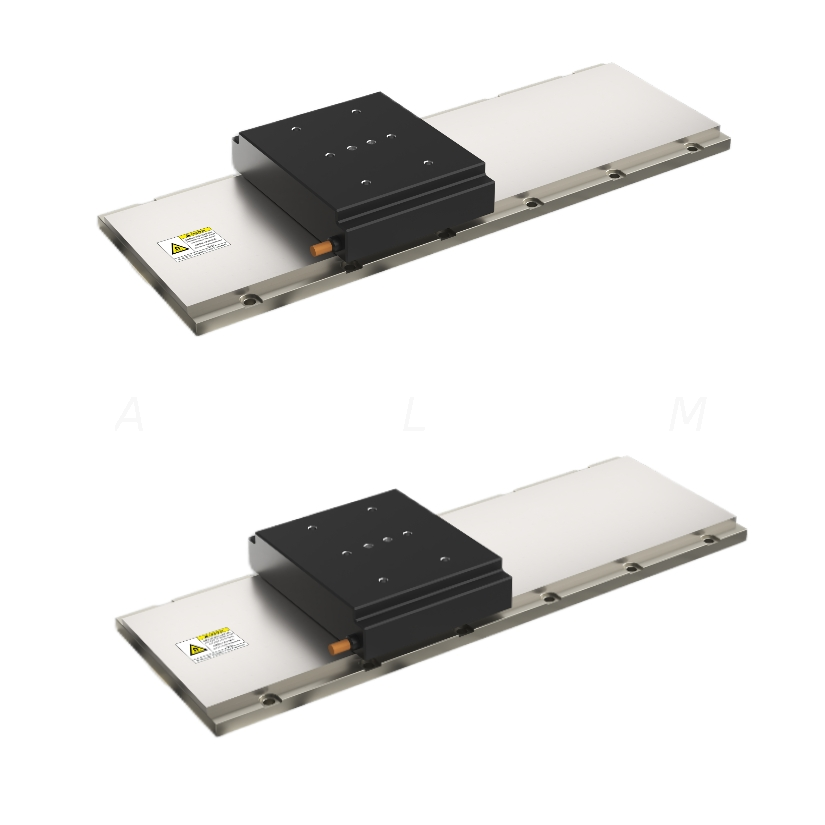

Magnetic Encoder Linear Motor for Industrial Robot

Excellent service
Quality assurance
Customized service
Fast delivery:3~10days
  • MHT-S1-125

  • 8501109990

The MHT series linear motor not only has high thrust density, but also achieves minimal cogging force.The speed fluctuation can reach around 3 ‰ , and the position error can reach ± 5 count at a uniform speed.

MHT Linear Motor Parameter

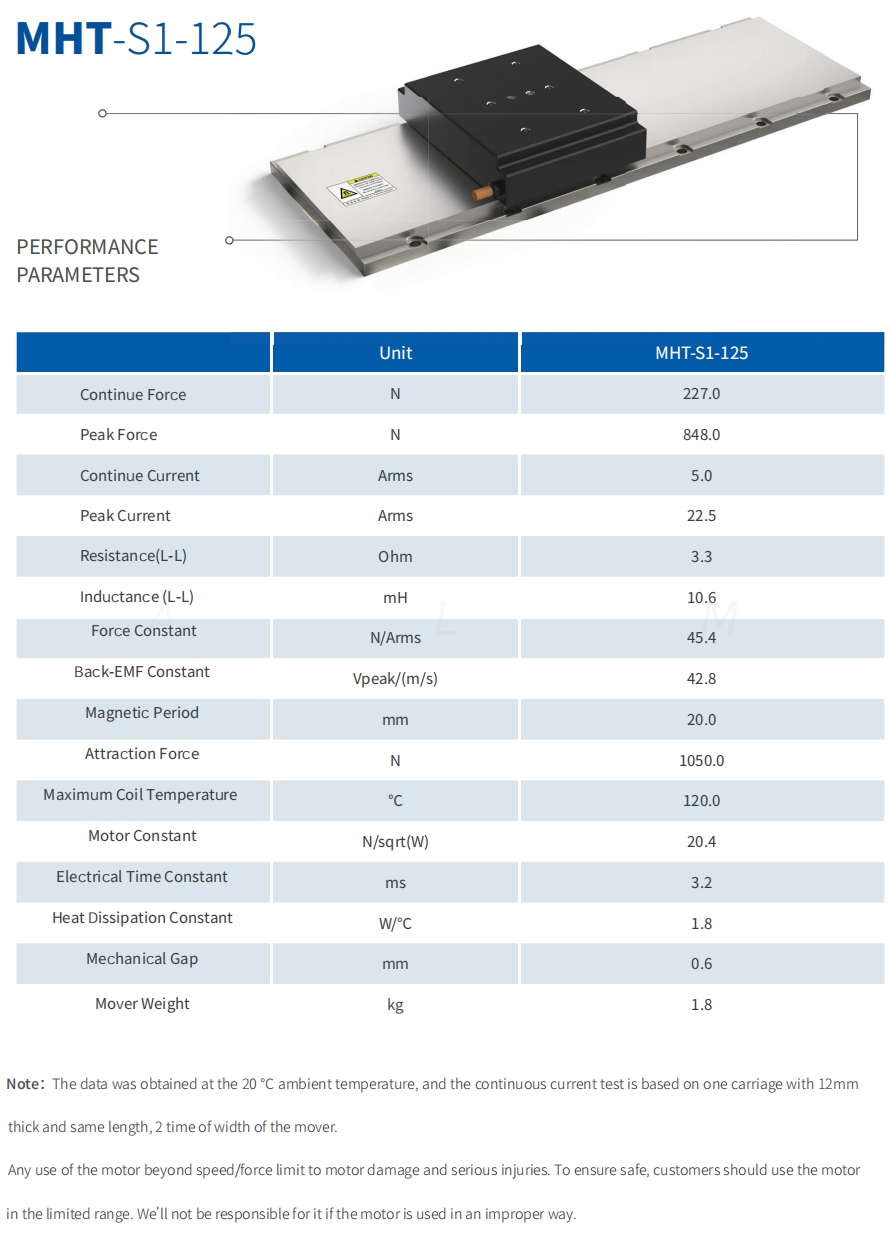

MHT-S1-125 dimension

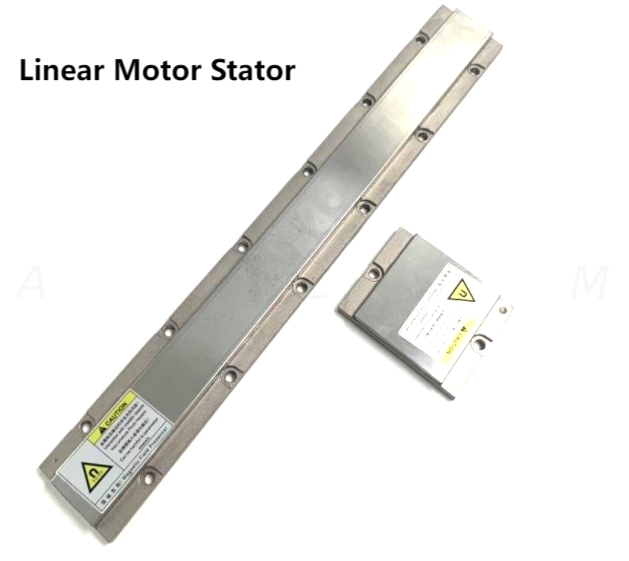

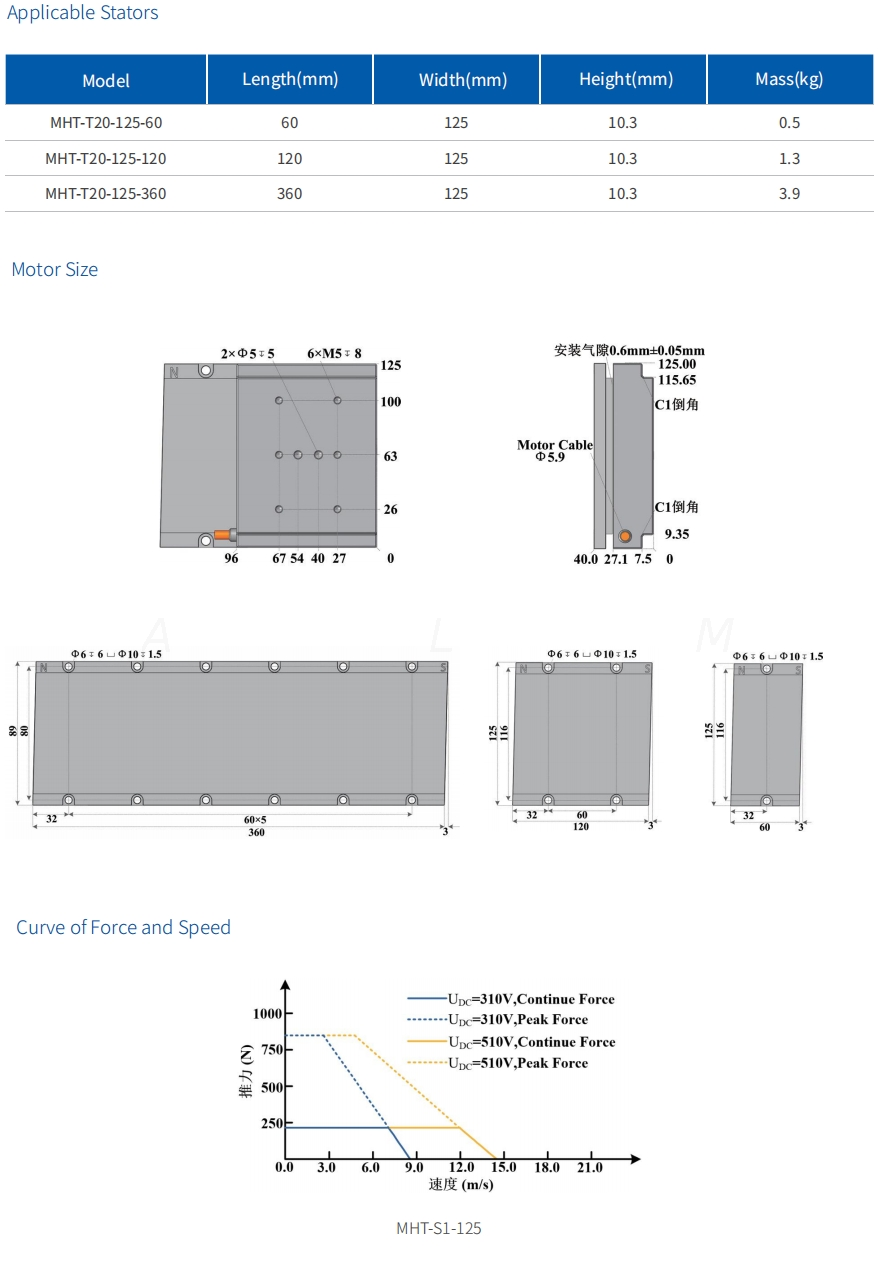

MHT-S1-125 stator

MHT Linear Motor Applications

The applications of MHT linear motor from ALM in the following area can bring significant advantages for our customers.

- Ic Package

- Testing Of Semiconductor equipment

- Ic Patching

- Photovoltaic Panel manufacturing

- Laser Cutting equipments

- Medical Apparatus And Instruments

- Machine Tool

- Lithium battery manufacturing

- Optical Equipments

- Panel display manufacturing

MHT linear motor application


ALM originally established in year of 2005.From a small factory,ALM nowadays own factory 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years' experience in linear motion filed.

With the products covering more than 72 countries in Europe,North America,South Asia,Middle East,Africa,Latin America and Australia,New Zealand etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.In year of 2016,our Dr team carryied out new innovation linear motor testing.

ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.With advanced production management enables ALM obtain the quality certificate ISO9001:2008 and IATF16949.The R&D achievements over many years bring  ALM more than 26 national patents.

ALM R&D team

ALM R&D team

ALM R&D teamR&D team

ALM's office

ALM office

ALM's workshop

ALM linear motor workshop

ALM product processing

ALM product processing

ALM product testing

product testing

ALM's warehouse

ALM warehouse

ALM product show

ALM product show

Customer Visit

customer visit

Patent Certificate for invention and utility model

seidal product certificate

ISO certificate

seidal certificate

CE certificate

ALM linear motor certificate

1.Why can ALM be your better option for linear motion components?

With more than 16 years of industry experience,quality assurance,factory directly price.

2.What is your main products ?

Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor.

3.When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.

4.How to Custom-made?

custom ball screw
